Straight length 120 - 1000 mm / Ø 80-100-130-150-180-200 mm
Assuming an inner diameter of 80mm, the straight element will have an outer diameter of 130mm.
Assuming an inner diameter of 100mm, the straight element will have an outer diameter of 150mm.
Assuming an inner diameter of 130mm, the straight element will have an outer diameter of 180mm.
Assuming an inner diameter of 150mm, the straight element will have an outer diameter of 200mm.
Assuming an inner diameter of 180mm, the straight element will have an outer diameter of 230mm.
Assuming an inner diameter of 200mm, the straight element will have an outer diameter of 250mm.
Easier installation method |
|
up to 25 years guaranty |
|
Perfect insulating effect |
|
More stability and rigidity |
|
Best materials and highest quality |

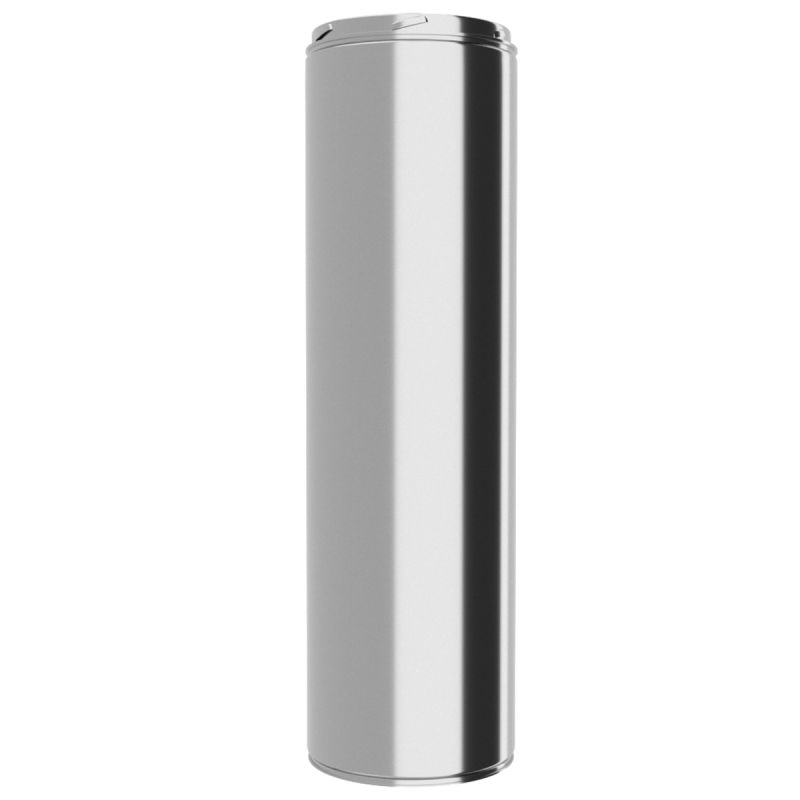

The twin wall straight length with practical twist-lock system is very stable and available in different lengths. This allows the individual straight lengths to be plugged and fastened on top of one another without any problems, thus achieving the desired height of your stainless steel chimney. The connection between two elements must always be secured with a locking band. Only the high-quality stainless steel V4A (material 1.4404 inner tube and 1.4301 outer tube) is used for the production of the straight length. The inner and outer tubes of the straight length are made of 0.5 mm thick stainless steel. The continuous insulation consists of a ceramic fiber with a thickness of 25 mm and thus ensures optimal smoke extraction. This guarantees high durability, strength and temperature resistance. The high quality straight length can be combined with all other elements of the same diameter.
The element is available in different versions with diameters from 80 mm to 200 mm.
Pay attention to the specification of the material numbers e.g. 1.4404 or 1.4301!
If the material number is not specified, it may be the cheaper, ferritic (or magnetic) variant.
Delivery Time | 6-10 working days - All import duties are included in your order – the price you see is the price you pay. |
---|
