Chimney flue pipe kits with wall bracket 3m-4m-5m twin wall matt black Ø 80-100-130-150-180-200 MM

Delivery Time
10 - 14 working days
Out of stock
Only %1 left
SKU
Kitinterieurnoir_config
Manufacturer guarantee Up to 25 years
Shipping Free for all kits
Insulation strength 25 mm with ceramic fiber
Application temperature 600 °C permanent / 1000 °C burn-out tested - highest level
Fuels Solid fuel, oil and gas
Material 1.4404 (V4A) inside und 1.4301 (V2A) outside
Certification According to DIN EN 1856-1 by TÜV
Material thickness 0.5 mm
Assembly Instructions Simple twist lock system

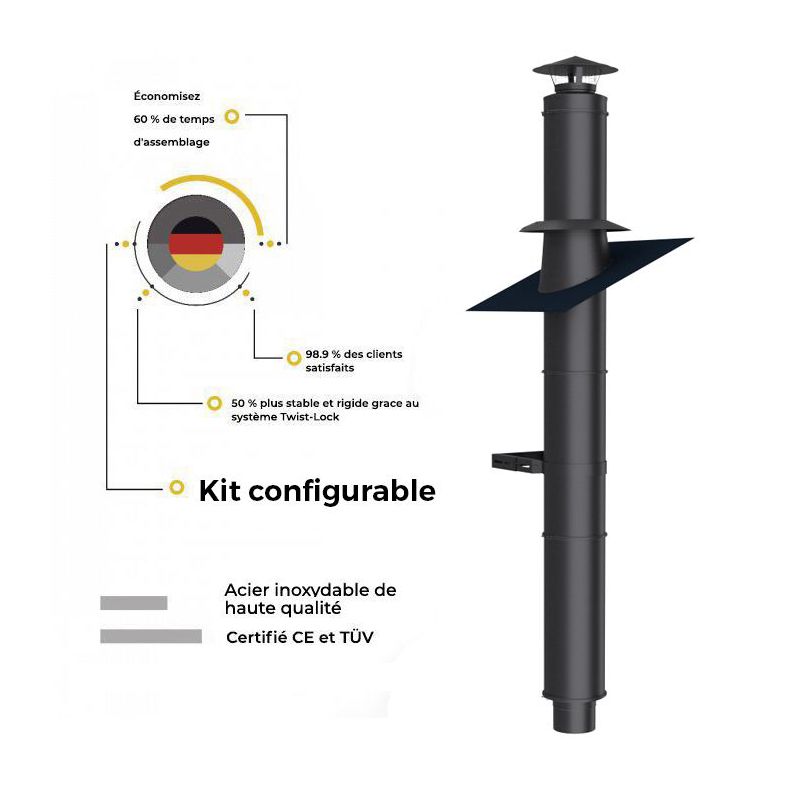

Our insulated twin wall kits for the interior of your home are available in several diameters and lengths in matte black or glossy black.

Internal diameter Ø 80-100-130-150-180-200 mm

The insulation of our twin wall products is 25mm on each side.

All our twin wall products are made of AISI 316L / 304 stainless steel

The wall thickness is 0.5mm

We offer you a 10 year guarantee or 25 (optional guarantee) on all our stainless steel products.

By taking one of our interior kits you have the choice between an aluminum roof flashing and a lead roof flashing.

Aluminum roof flashing is suitable for flat surfaces.

You can also choose the gap to the wall with our wall clamps.

Thanks to our Twist-Lock installation system, the installation is quite easy. All you have to do is assemble the twin wall products on top of each other by making the gesture when you close a jar of jam.

Delivery is free for any order with one of our twin wall kit for interior or exterior.

More Information
Delivery Time 10 - 14 working days
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Q&A

Our years of experience in the manufacture and sale of chimneys has shown us that many questions arise on the customer side. We have answered these questions and created a small questionnaire for you so that you can get answers to your questions online at any time.


Our twist lock system enables you to assemble the chimney quickly and easily. This system consists of a swivel joint which enables the individual components to be placed on top of one another and tightened (like a jam jar cap). We also supply a locking band for additional fixation. All components are locked. This means that the insulation is not visible from the outside, which prevents soot particles from escaping. The twist lock system ensures greater stability of the fully assembled flue pipe.

Our twin wall stainless steel flue pipes are TÜV-tested and CE-certified. These are made of V4A and V2A stainless steel. This type of stainless steel is best known for its durability and heat resistance up to 600 °C. All stainless steel flue pipes that are for sale in our online shop are twin wall. They have an insulation thickness of 25 mm and are equipped with our patented twist lock system.

The stainless steel flue pipes from ES Chimney System are easy to plan and assemble. They are also very stable and have an elegant and modern design.

Thanks to the very good insulation, our chimneys can store heat very well, so that an optimal temperature can be reached and maintained in your rooms. Due to the pure stainless steel that we use for our products, our chimneys do not contain any metal, so they are not magnetic and therefore rust-free. We give you a 25 year guarantee!

Please refer to the Sweeping and Inspection Ordinance for information on the frequency of sweeping and cleaning your chimney.

A chimney sweeper you trust can usually clean your stainless steel flue pipe. He or she must adhere to the general rules in order to carry out proper cleaning. However, you must then ensure that your stove has cooled down completely before the chimney sweeper's appointment.

How often your stainless steel flue pipe needs to be cleaned depends on how you use it. This can be from once to four times a year. You should determine the exact number per year with your chimney sweeper.

At an internal temperature of up to 250 °C, the stainless steel flue pipe also becomes warm from the outside. The warmest point is roughly above the connector. This location should usually be out of the reach of children. You can't get burned on it, but you should be careful because it gets very warm!

Yes, the assembly of our flue pipes is very easy and quick. For the exact description, take a look at our videos.

Yes, our flue pieps are CE certified and TÜV tested.

The delivery time is usually 14 days. More details on shipping costs can be found here.

Yes, you can exchange our products within 14 days or return them to us if not used. To do this, please send us an email to info@eschimney.co.uk and notify us of the return.

You can order further elements from us online at any time. If you are not sure whether and what exactly is missing, please contact us so that we can help you.

Click here to download our Declaration of Conformity or contact our customer service. Our employees can then send you the certificate by email.

Click here to download your assembly instructions or contact us by phone. Our customer support will be happy to help you!
