Roof support Ø 80-100-130-150-180-200 mm
Assuming an inner diameter of 80mm, the product will have an outer diameter of 130mm.
Assuming an inner diameter of 100mm, the product will have an outer diameter of 150mm.
Assuming an inner diameter of 130mm, the product will have an outer diameter of 180mm.
Assuming an inner diameter of 150mm, the product will have an outer diameter of 200mm.
Assuming an inner diameter of 180mm, the product will have an outer diameter of 230mm.
Assuming an inner diameter of 200mm, the product will have an outer diameter of 250mm.
Easier installation method |
|
up to 25 years guaranty |
|
Perfect insulating effect |
|
More stability and rigidity |
|
Best materials and highest quality |

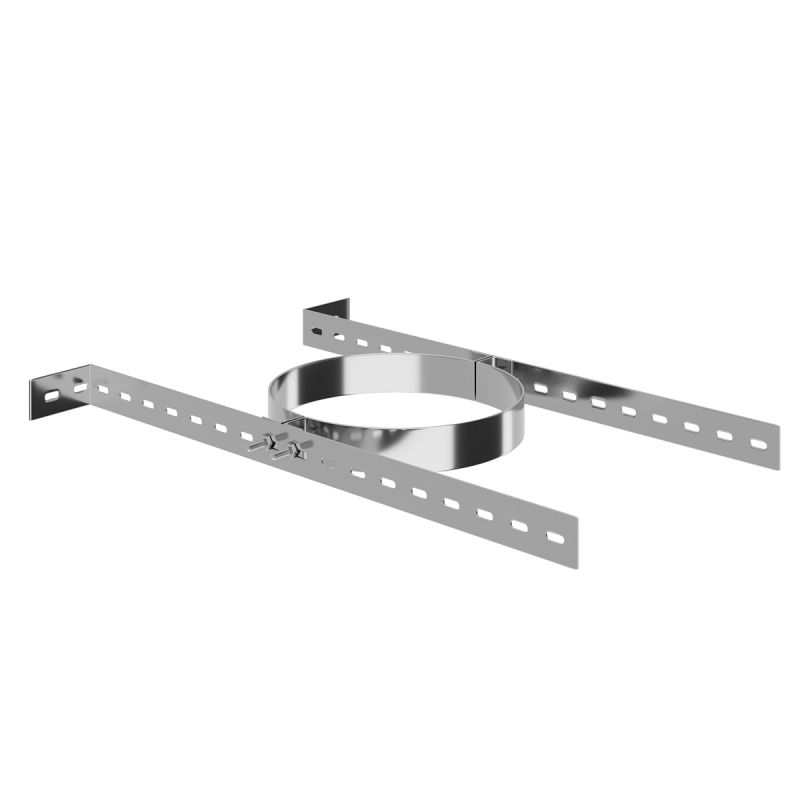

The roof support is used to anchor the chimney to the rafters if you want to make a roof penetration of the chimney. In order to attach the roof support, the two long wings must be attached to the rafter. The wings can be rotated freely so that they can be adapted to all roof pitches.
Warning! roof supports do NOT carry the load of the chimney! A wall or floor bracket must also be installed for this. Our roof support is made of high quality V4A stainless steel. roof supports can also be used as ceiling brackets.
Please note that in our online shop we always go by the inside diameter of our chimneys . The insulation thickness of 25 mm results in a different outside diameter of the chimney elements . For wall rosettes, rain caps and other products that are placed or set around your chimney, please ensure that you always choose the same inner diameter as your chimney when ordering - regardless of the accessory is acting. We will then deliver the right size.
If you have previously bought your chimney from another dealer, we cannot guarantee that our accessories will fit. If you have any questions, we are happy to help you by phone.
Type: double-walled
Corrosion class: V2
Tightness class: N1
Operating conditions: gas - oil - wood - coal
Application temperature: 600 ° C permanent / 1000 ° C burn-out tested - highest level
Pay attention to the specification of the material numbers e.g. 1.4404 or 1.4301!
If the material number is not given, it may be the cheaper, ferritic (or magnetic) variant.
Delivery Time | 6-10 working days - All import duties are included in your order – the price you see is the price you pay. |
---|
